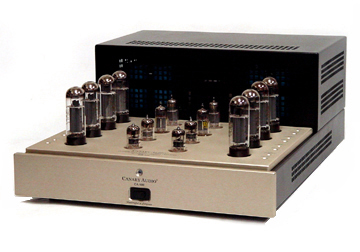

CA-100 Stereo Power Amplifier
|
| |
|
Musical Beauty of Push-Pull Triode: |
The CA-100 is a stereo power amplifier in push-pull triode configuration with EL34 / 6CA7 output tubes. To get the most out of the design, Hovland MusiCaps® are used in key circuit locations. The oversize custom wound output and power transformers are specially designed to extend the bass and highs. An independent, choke filtered high voltage supplies is used for both channel. Just as important, the military grade epoxy circuit boards are designed to minimize component interaction.
With an output power rated at 80 watts, the CA-100 is capable to reproduce music loudly and cleanly. With the CA-100, we have created a push-pull triode stereo amp which offers you similar musical performance of the almighty CA-160, but at a much more affordable price. This is the power amp for you if you want the musical beauty of triode sound.
|
| |
| Specifications for CA-100
|
|
Rated Power Output: |
80 Watts RMS |
|
Input Sensitivity: |
0.53 Volts for full output |
|
Input Impedance: |
470,000 Ohms |
|
Frequency Response: |
+/- 1dB from 10 Hz to 40,000 Hz |
|
Total Harmonic Distortion: |
< 0.15% |
|
Signal-to-Noise Ratio: |
-78 dB below 1 Watt |
|
Damping Factor: |
16 |
|
Power Consumption: |
340 Watts (true RMS) |
|
Output Impedance: |
4, 8 Ohm |
|
Tube Complement: |
8 x EL34 / 6CA7
4 x 6922
2 x 6CG7 / 6FQ7
2 x 12BH7A |
|
Dimensions: |
16.5" W x 23.5" D x 8.5" H |
|
Net Weight: |
80 lbs |
|
Warranty: |
3 Years Parts and Labor |
|
Specifications subject to change without notice. |
|
