CA-301 MK-II Stereo Power Amplifier
|
| |
| Enter the 300B: |
|
Simply put, the 300B is the best audio power tube ever designed. It unlocks the texture and body inside your recordings. You will hear the things that separate the masters from the merely proficient.
|
| |
| Built Around 300B Triode Tubes: |
|

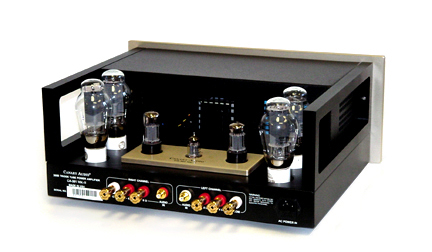

The CA-301MK-II is a stereo power amplifier in push-pull triode configuration with 300B output tubes. To get the most out of the design, only highest quality parts and components are used in critical applications. The oversize custom wound output and power transformers are specially designed to extend the bass and highs. Just as important, the military grade epoxy circuit boards are designed to minimize component interaction. You will also see the care we took by looking inside. Neatly laid out internal Teflon wiring, carefully thought through grounding path, all done in the best traditions of American craftsmanship.
The stylish chassis is made of thick steel, the custom made gold plated binding posts clamp down on your speaker wire for solid contact. Even the blue jewel light instead of the usual stoplight red or green tells you that we are taking the care to be distinctive.
|
| |
|
| Specifications for CA-301 MK-II
|
|
Rated Power Output: |
22 Watts RMS |
|
Input Sensitivity: |
0.33 Volts for full output |
|
Input Impedance: |
100,000 Ohms |
|
Frequency Response: |
+/- 3dB from 10 Hz to 55,000 Hz |
|
Total Harmonic Distortion: |
< 0.5% |
|
Signal-to-Noise Ratio: |
-84 dB below 1 Watt |
|
Damping Factor: |
10 |
|
Power Consumption: |
210 Watts (true RMS) |
|
Output Impedance: |
4, 8 Ohm |
|
Tube Complement: |
4 x 300B
2 x 6SN7GTB
1 x 12AX7 |
|
Dimensions: |
19" W x 16" D x 7" H |
|
Net Weight: |
68 lbs |
|
Warranty: |
3 Years Parts and Labor |
|
Specifications subject to change without notice. |
|
