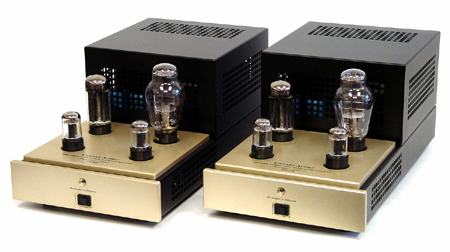

CA-308 Mono Blocks Power Amplifier
|
| |
|
Single-Ended:
|
|
We at Canary understand that some people are enchanted with single-ended amplifiers. Although our push-pull amplifiers have been very well received by many audio enthusiasts, we did not want those single-ended lovers think that Canary had turned its tail feathers down on them. We finally decided to build a pair of mono block amplifiers around the 300B triode tubes in a single-ended circuit. |
| |
|
American Craftsmanship: |
When building the CA-308 mono blocks power amplifier, we used the highest quality parts and components that we could ever find. Executed and assembled the design with the best traditions of American craftsmanship. In addition to that, the CA-308 is auto biasing. There is no need to ever worry about biasing the amplifiers. Listen to the CA-308 and experience what single-ended is meant to be.
Click here to read review on the CA-308 from 6moons.com by Srajan Ebaen.
|
| |
| Specifications for CA-308
|
|
Rated Power Output: |
8 Watts RMS |
|
Input Sensitivity: |
1.2 Volts for full output |
|
Input Impedance: |
100,000 Ohms |
|
Frequency Response: |
+/- 3dB from 10 Hz to 54,000 Hz |
|
Total Harmonic Distortion: |
< 0.2% |
|
Signal-to-Noise Ratio: |
-90 dB below 1 Watt |
|
Damping Factor: |
3 |
|
Power Consumption: |
105 Watts (true RMS) |
|
Output Impedance: |
4, 8 Ohm |
|
Tube Complement (per channel): |
1 x 300B
2 x 6SN7
1 x 5U4GB |
|
Dimensions (per channel): |
9" W x 19" D x 8" H |
|
Net Weight (per channel): |
38 lbs |
|
Warranty: |
3 Years Parts and Labor |
|
Specifications subject to change without notice. |
|
