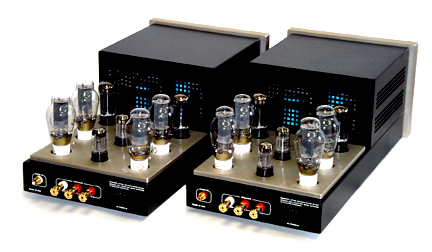

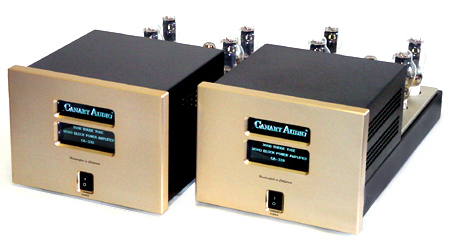

CA-339 Mono Blocks Power Amplifier
|
| |
|
Built around 300B Triode Tubes: |
|
Based on the same design as the legendary CA-309, the CA-339 is a class A triode mode, push-pull parallel mono blocks power amplifier with 300B output tubes. It features a modified circuitry that guarantees a more dynamic soundstage with deeper base tones. Only highest quality parts and components are used in critical applications and Hovland MusiCaps® are used in key circuit locations. The oversize custom wound power and output transformers are redesigned to handle twice the CA-339's 50 watt power rating, ensuring durability. An independent, choke filtered high voltage supplies is used for each channel. |
| |
|
The Muscular Canary: |
|
The CA-339 mono blocks power amplifier is specially designed for optimum sound quality. Deliver high power music at wide dynamic range with ultra low distortion, the CA-339 is simply the finest amplifier one could desire. Maybe the muscular canary doesn't exist in nature, but if one existed, it might sound something like this amplifier. |
| |
|
| Specifications for CA-339
|
|
Rated Power Output: |
50 Watts RMS |
|
Input Sensitivity: |
0.75 Volts for full output |
|
Input Impedance: |
150,000 Ohms |
|
Frequency Response: |
+/- 1dB from 10 Hz to 80,000 Hz |
|
Total Harmonic Distortion: |
< 0.2% |
|
Signal-to-Noise Ratio: |
-81 dB below 1 Watt |
|
Damping Factor: |
14 |
|
Power Consumption: |
350 Watts (true RMS) |
|
Output Impedance: |
4, 8 Ohm |
|
Tube Complement (per channel): |
4 x 300B
2 x 6SN7GTB
2 x 5U4GB |
|
Dimensions (per channel): |
12" W x 24.5" D x 9" H |
|
Net Weight (per channel): |
70 lbs |
|
Warranty: |
3 Years Parts and Labor |
|
Specifications subject to change without notice. |
|
