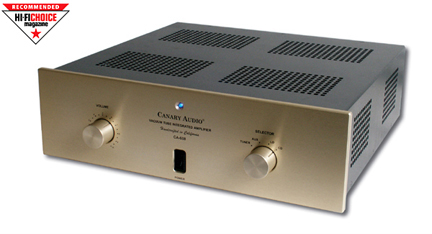

CA-608 Integrated Amplifier
|
| |
|
A Prefect Combination:
|
The CA-608 is an integrated amplifier based on four EL 34 tubes and operates under ultra-linear mode. Built with the highest quality parts and components that we could ever find. Executed and assembled the design with the best traditions of American craftsmanship. The input signals were routed directly, through pure silver/Teflon coaxial cable, from the gold plated line level input jacks to the high quality rotary switch. Next to the selector switch is the ALPS volume control. A self-effacing TKD stepped attenuator is also available as an option.
The CA-608 integrated amplifier is the result for the combination of our extraordinary designs in power amplifiers and preamplifiers. A combination that brings a new level of excitement and musical enjoyment.
|
| |
| Specifications for CA-608
|
|
Rated Power Output: |
40 Watts RMS |
|
Input Sensitivity: |
1.0 Volts for full output |
|
Input Impedance: |
100,000 Ohms |
|
Frequency Response: |
+/- 3dB from 10 Hz to 48,000 Hz |
|
Total Harmonic Distortion: |
< 0.5% |
|
Signal-to-Noise Ratio: |
-78 dB below 1 Watt |
|
Damping Factor: |
10 |
|
Power Consumption: |
265 Watts (true RMS) |
|
Output Impedance: |
4, 8 Ohm |
|
Tube Complement: |
4 x EL34 / 6CA7
2 x 6SN7GTB
1 x 12AX7 |
|
Dimensions: |
19" W x 19.5" D x 6" H |
|
Net Weight: |
58 lbs |
|
Warranty: |
3 Years Parts and Labor |
|
Specifications subject to change without notice. |
|
