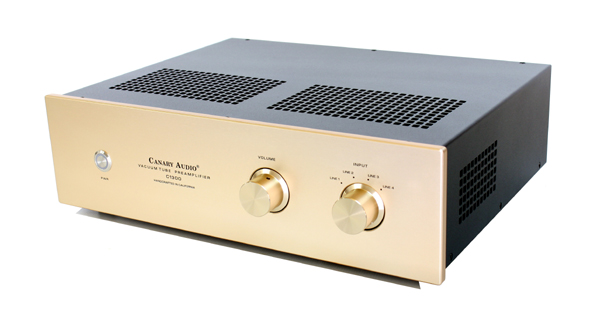

C1300 Preamplifier |
|
The C1300 is the single chassis version of our highly regarded two chassis premaplifier. It employs an advanced circuitry and high
quality components to provide outstanding musical reproduction of your favorite music.
Like our other products, the C1300 is engineered and built to provide a lifetime of musical enjoyment. The circuitry components
used in the C1300 are carefully chosen and hand soldered on the military grade epoxy
circuit boards. A motorized attenuator with remote control function is available as an option.
|
|
|
C1300 Preamplifier Features: |
|
The power supply circuit uses GZ34, 6V6 and 6SL7 as rectifier.
The preamp circuit features the use of two 12AX7 and two 12AU7 tubes for a low noise operation.
Rectifier with choke filtering.
Custom EI power transformer.
Swiss made ELMA selector switches with gold-plated contacts.
Optional motorized attenuator with remote control function.

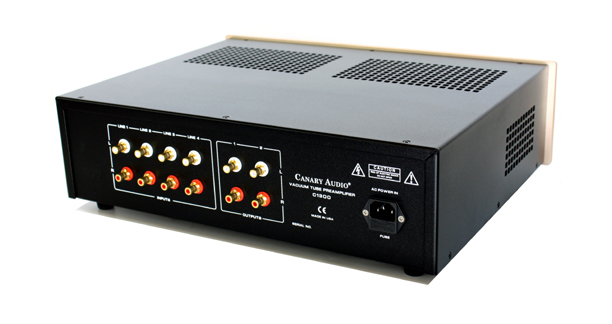

Four pairs of single-ended inputs and two pairs of outputs are installed for ease of connectivity.
|
|
SPECIFICATIONS
|
Input Impedance: |
45,000 Ohms min,110,000 Ohms max |
Output Impedance: |
1,400 Ohms |
Maximum Gain: |
9 dB |
Frequency Response: |
+/- 1 dB from 5 Hz to 110,000 Hz |
Hum and Noise: |
-80 dB |
Maximum Output Voltage before Clipping: |
30 Volts |
Total Harmonic Distortion: |
< 0.04% |
Power Consumption: |
35 Watts (true RMS) |
Tube Complement: |
2 x 12AU7
2 x 12AX7
1 x 5AR4
1 x 6SL7
1 x 6V6
|
Dimensions: |
18.75" W x 14.25" D x 5.50"H |
Net Weight: |
35 lbs |
Warranty: |
3 Years Parts and Labor |
Specifications subject to change without notice. |
|
