CA-301 Anniversary Edition
|
|
20 Years Anniversary: |
|
Canary Audio has been offering its extraordinary audio systems to music lovers for 20 years; and to celebrate,
we're offering a limited edition collector’s item: The CA-301 Anniversary Edition. |
|
The Legend has Returned: |
|
The legendary CA-301 300B push-pull power amplifier was our very first product and since the day it launched,
it soon became a big hit and was very well received by many audiophiles all around the world. The CA-301 was in production from
March 1994 until September 2005. We had to discontinue the CA-301 because many of the original parts and components were
out of production and no longer available.
As we celebrate our 20th anniversary, we are bringing back the CA-301 upon requests
as a special Anniversary Edition model.

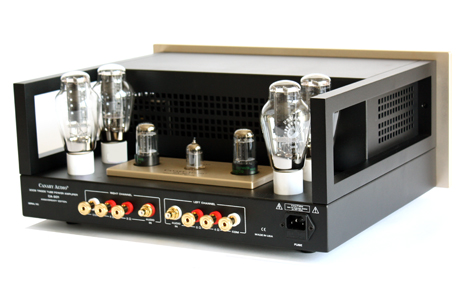

Based on the original CA-301 and the MK-II version, the new CA-301 Anniversary Edition features a modified circuitry with
the use of updated parts and components. MIT PPFXS MultiCap are used in key circuit locations. New bias checkpoints and bias
trim pots are added making biasing the amplifier a lot easier and more precise.
Only limited quantities are available worldwide so reserve yours today.
All CA-301-AE have been sold. Thank you for the support.
|
|
|
Image Gallery
|
|
SPECIFICATIONS
|
Rated Power Output: |
22 Watts RMS |
Input Sensitivity: |
0.33 Volts for full output |
Input Impedance: |
100,000 Ohms |
Frequency Response: |
+/- 2dB from 10 Hz to 60,000 Hz |
Total Harmonic Distortion: |
< 0.5% |
Signal-to-Noise Ratio: |
-84 dB below 1 Watt |
Damping Factor: |
10 |
Power Consumption: |
210 Watts (true RMS) |
Output Impedance: |
4, 8 Ohm |

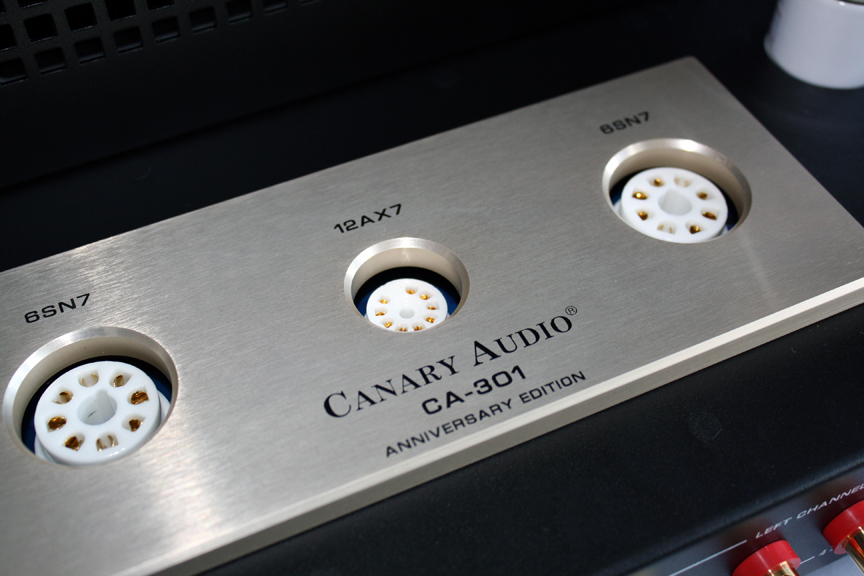

Tube Complement: |
4 x 300B
2 x 6SN7
2 x 12AX7 |
Dimensions: |
19" W x 16" D x 7" H |
Net Weight (per channel): |
65 lbs |
Warranty: |
3 Years Parts and Labor |
Specifications and pricing subject to change without notice. |
|
