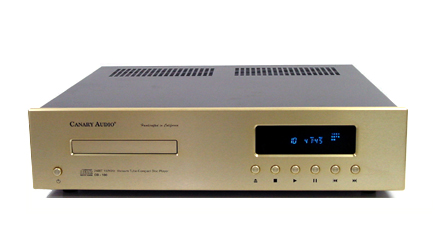

CD-100 Vacuum Tube Compact Disc Player
|
| |
The CD-100 is our first and newest tube CD player. It uses a heavy duty Sony CD mechanism for optimum laser alignment and precise playback. The propriety circuitry incorporates the latest Sony 24 Bit / 192 kHz DAC for stunning performance. The output section is a true tube stereo output stage utilizing two 6922 vacuum tubes.
Like our amps and preamps, the CD-100 is packed with highest quality parts and components such as Hovland MusiCaps®. The custom wound toroid transformer is housed in a metal can filled with epoxy to eliminate vibration.
The CD-100 is truly an excellent sounding tube CD player with a warm, transparent and musical sound. A CD player that reproduces music from your CD to its fullest extent.
|
|
| |
| |
|
Features:
|
High performance Sony CD mechanism improves disc playability and reliability.
Latest Sony 24 Bit / 192 kHz DAC for stunning performance.
A true tube stereo output stage utilizing two 6922 vacuum tubes.
One pair of real balanced XLR and one pair of single-ended RCA outputs.
1 x AES/EBU, 1 x optical and 1 x coaxial digital outputs.
Heavy duty solid aluminum faceplate and buttons with light gold color anodize.
Heavy duty solid aluminum full-function 8 buttons remote control.
|
|
| |
| |
| Specifications for CD-100
|
|
Frequency Response:
>>>>>>>>>>>>>>>>>>>> |
+/- 1 dB from 20Hz to 20KHz |
|
Distortion: |
< 0.005% |
|
Signal-to-Noise Ratio: |
> 118dB |
|
Daynamic Range: |
> 116dB |
|
Channel Separation: |
> 85dB (1KHz) |
|
Sampling Frequency: |
44.1KHz |
|
Line Output Voltage: |
2.0 Volts |
|
Power Consumption: |
30 Watts |
|
Tube Complement: |
2 x 6922 |
|
Dimensions: |
19" W x 16.5" D x 4.75" H |
|
Net Weight: |
50 lbs |
|
Warranty: |
3 Years on Parts and Labor with the exception of the Transport Mechanism.
1 Year on the Transport Mechanism and Laser Head.
|
|
Specifications subject to change without notice. |
|
